The TRAC® range of metal and Glass Reinforced Gypsum ceilings are specially designed for the Indian market, taking into account of building design, construction practices and weather conditions. INTERARCH introduced TRAC® lineal metal ceilings in 1983.

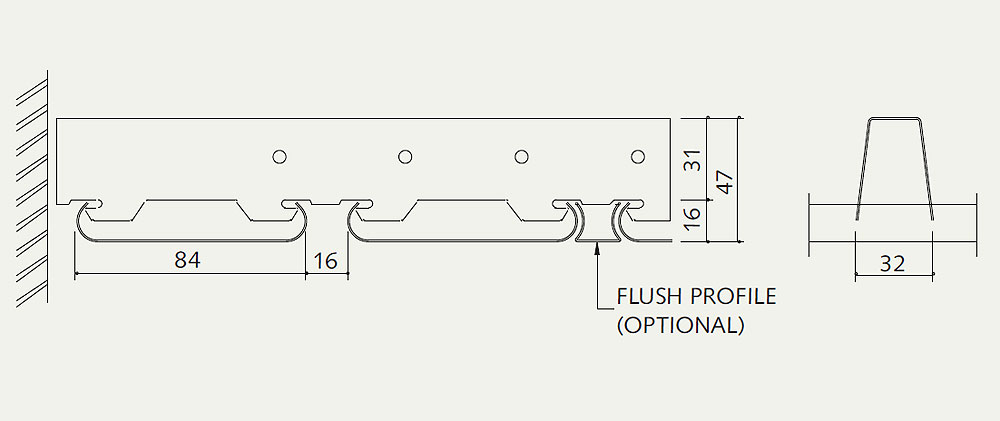

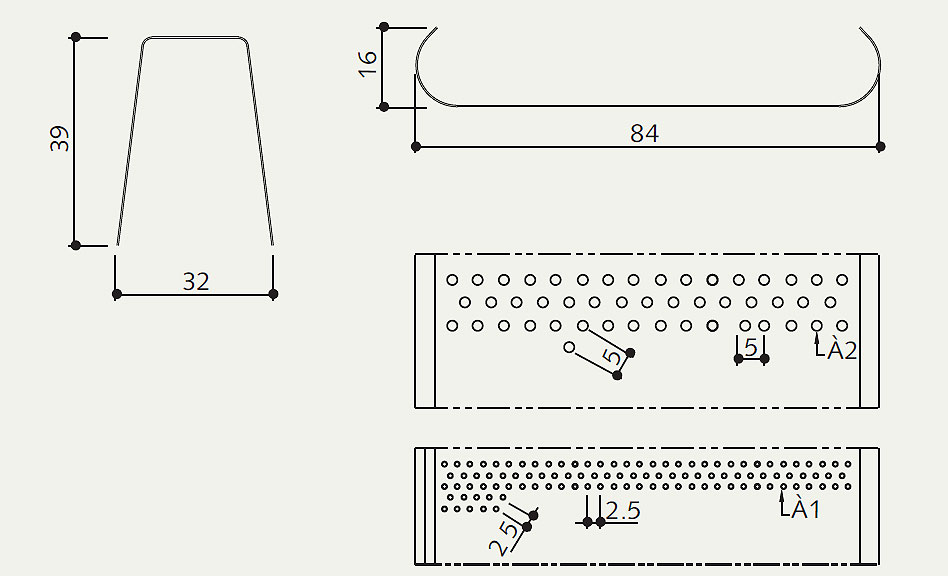

84mm wide x 16mm deep, made out of 0.50mm aluminium alloy AA3005/3105/5052 with stove enamelled coil coated finish / 0.45 galvanised steel with stove enamelled coil coated finish. (Colour according to TRAC® colour chart and availability chart). Panel length upto approx 5m. When perforated, hole diameters are 2mm on 5mm centres (standard) or 1mm on 2.5mm centres (microperforated), the holes representing15% of the perforated area.
32mm wide, 39mm deep, made out of 0.95mm aluminium alloy AA 5052/0.6mm galvanised steel, with prongs to hold the panels in a module of 90mm/100mm (gap 6/16mm, open). Optional gap closures with recessed or flush join profiles for 16mm gap.
Made of enamelled aluminium, for 100mmmodule (16mm gap). Suspension: By means of suspension rods and spring clips. One suspension for every 1.5 to 2 sq.m.
1.3m max. with insulation, 1.5m max. without insulation.
1.3m max. spacing of suspension rods
Panels will be finished on exposed side with 20 microns polyester coil coating over primer and on rear side with a wash coat.
84mm wide x 16mm deep, made out of 0.60mm aluminium alloy AA 3005 / 3105 / 5052 with stove enamelled coil coated finish. (Colour according to TRAC® colour chart and availability chart). Panel length upto approx 5m
34.5mm wide, 48mm deep, made out of 0.95mm aluminium alloy 5052, with prongs to hold the panels in a module of 90mm / 100mm (gap 6 / 16mm open). Optional gap closure with flush join profile for 16mm gap.
By means of rigid suspension rods or on steel substructure.
800mm max.
500mm max. spacing of suspension angles.
Panels will be finished on exposed side with coil coated stove enamelled PVF2 or polyurethane paint with a wash coat on the rear side.

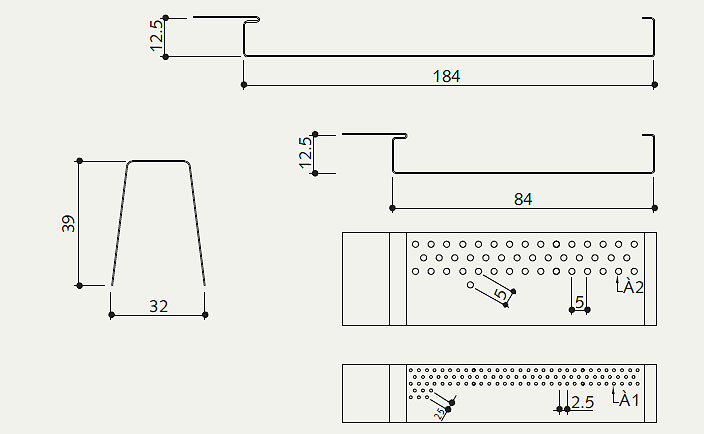

84mm/184mm wide x 12.5mm deep, with a recessed flange of 23.5mm, made out of 0.50mm aluminium alloy AA 3005/3105/5052 with stove enamelled coil coated finish 0.45mm galvanised steel with stove enamelled coil coated finish. (Colour according to TRAC® colour chart and availability chart). Panel lengths up to approx. 5m
32mm wide, 39mm deep, made out of 0.95mm aluminium alloy AA 5052/0.6mm galvanised steel, with cutouts to hold the panels in a module of 100mm (84C) or 200mm (184C), gap 16mm closed.
By means of suspension rods and spring clips. One suspension for every 1.5 to 2 sq.m.
1.3m max. with insulation, 1.6m max. without insulation.
1.3m max. spacing of suspension rods.
Panels will be finished on exposed side with 20 microns polyester coil coating over primer and on the rear side with a wash coat.

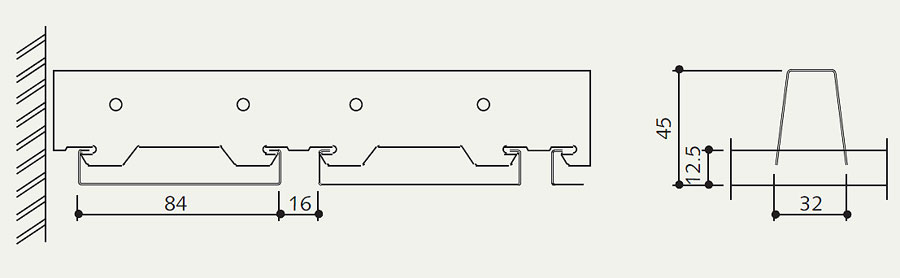

84C ceilings can also be used for exterior applications when suspended by rigid suspension rods or mounted on a steel substructure. 84C exterior ceiling is available in 0.50mm aluminium alloy AA 3005/3105/5052 with stove enamelled coil coated finish. (Colour according to TRAC® colour chart and availability chart). Panel Span: 800mm max.
500mm max. spacing of suspension angles.
Panels will be finished on exposed side with coil coated stove enamelled PVF2 or polyurethane paint with a wash coat on the rear side.

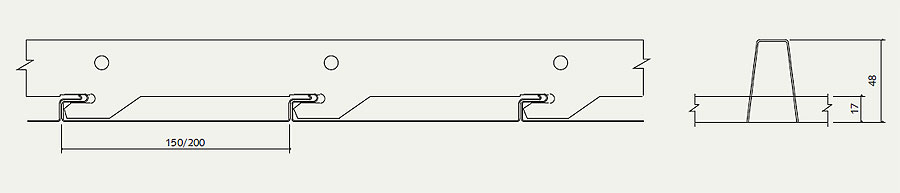

150mm wide x 17mm deep, made out of 0.60mm aluminium alloy AA 3105/3105/5052 with stove enamelled coil coated finish / 0.50mm galvanised steel with stove enamelled coil coated finish. (Colour according to TRAC® colour chart and availability chart). Panel length upto approx 5m
34.5mm wide, 48mm deep made out of 0.95mm aluminium alloy AA5052/0.60mm galvanised steel, with prongs to hold the panels in a module of 75 /150mm.
By means of suspension rods and spring clips.
1.5m max. with insulation, 1.8m max. without insulation
1.5m max. spacing of suspension rods.
Panels will be finished on exposed side with 20 microns polyester coil coating over primer and on the rear side with a wash coat.
150mm wide x 17mm deep, made out of 0.60mm aluminium alloy AA 3105 / 5050 with stove enamelled coil coated finish / 0.50mm galvanised steel with stove enamelled coil coated finish. (Colour according to Trac colour chart and availability chart). Panel length up to approx 5m.
34.5mm wide, 48mm deep made out of 0.95mm aluminium alloy AA 5052/0.60mm galvanised steel, with prongs to hold the panels in module of 150mm.
By means of rigid suspension angles or mounted on a steel sub-structure.
1000mm max.
500mm max. spacing of suspension angles.
Panels will be finished on exposed side with coil coated stove enamelled PVF2/ polyurethane/SMP paint with a wash coat on rear side.
TRAC® ceiling type 150C distinguishes itself from the other types because of its smooth, closed appearance. The panels about each other with a narrow V-groove. They are installed to carrier profiles and can be simply demounted individually, by inserting a plain strip between the profiles.
As with all TRAC® ceilings, the 150C can be applied in all types of buildings and because of their closed appearance they are particularly suitable for domestic applications: living rooms, kitchens, corridors etc.
150mm wide x 15mm deep with bevelled groove between panels, made out of 0.50mm thick aluminium alloy AA 3005/3105/5052 or 0.5mm thick galvanised steel. (Colour according to TRAC® colour chart and availability). Panel lengths upto approx 5 m. When perforated, hole diameters are 2mm on 5mm centres (standard) or 1mm on 2.5mm centres (micro-perforated), the holes representing 15% of the perforated area (150C only).
32mm wide, 39mm deep made out of 0.95mm aluminium of 0.6mm galvanised steel, with prongs to hold panel in a module of 15mm
By means of G.I. rod hangers and suspension clips.
1.3m max. with insulation, 1.5m max. without insulation.
1.3m max. spacing of suspension rods.
Panels will be finished on exposed side with 20 microns polyster coil coating over primer and on the rear with a wash coat.
200mm wide 45mm deep, made out of 0.70mm thick aluminum alloy AA 3105/5050 / 0.5mm thk. galvanised steel. Panels are available in standard lengths of 2 m and 3 m.
200mm wide, 40mm deep made out of 0.5mm galvanised steel with spring tee to hold the panels in module of 200mm. (Short sides of each plank are raised and pipped and stopped to ensure positive engagement into the clip-in panel carriers.)
By means of rigid suspension angles or mounted on a steel sub-structure.
800mm max. for interior ceilings, 600mm max. for exterior ceilings.
Panels will be finished on exposed side with 20 microns polyster coil coating over primer and on the rear side with a wash coat.
Panels will be finished on the exposed side with 50 microns epoxy polyster powder paint.
TRAC® tile and plank design ceiling system has been developed to meet both practical and aesthetical requirements of modern ceilings. The major advantages of the TRAC® tile/plank system are innovative suspension systems, optional rigid grid system for suspension of exterior ceilings, choice of tile material, extensive range of colours and finishes and a choice of perforations and flexibility in design specially with the plank ceiling system. The tile/plank ceiling systems are offered in stove enamelled coil coated steel and aluminium and powder coated steel and aluminium finishes and offer the advantage of easy cleaning, non-static properties and inert material.Incandescent and halogen type spot lights can be easily incorporated in the tile ceilings and fluorescent fittings within the plank ceilings.

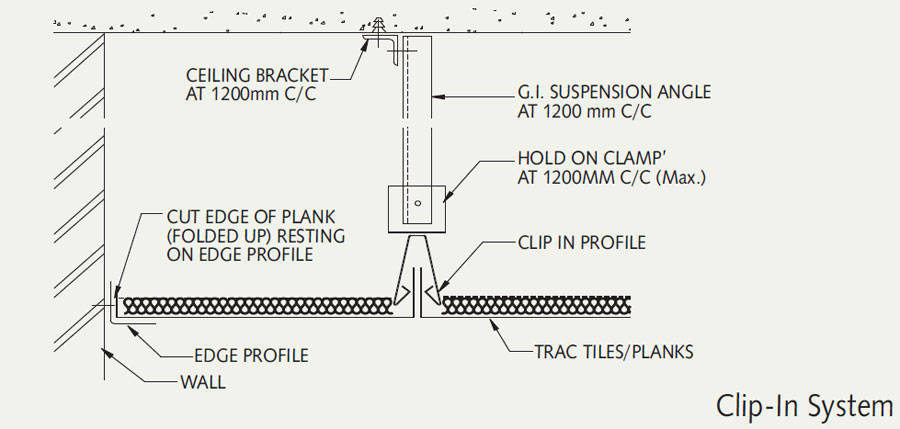

The clip-in system consists of 0.5mm galvanised steel clip in profile which is used as the primary suspension and if required, as a secondary suspension.

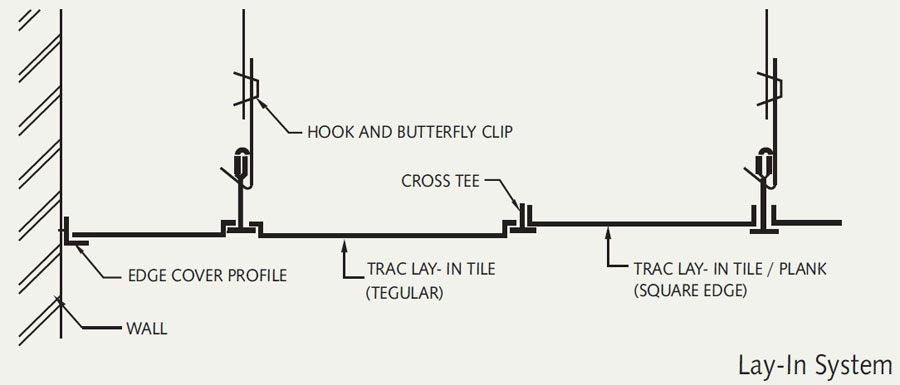

The lay-in system comprises the Trac 8011 exposed grid suspension. This grid features stab-in coupling and is demountable.

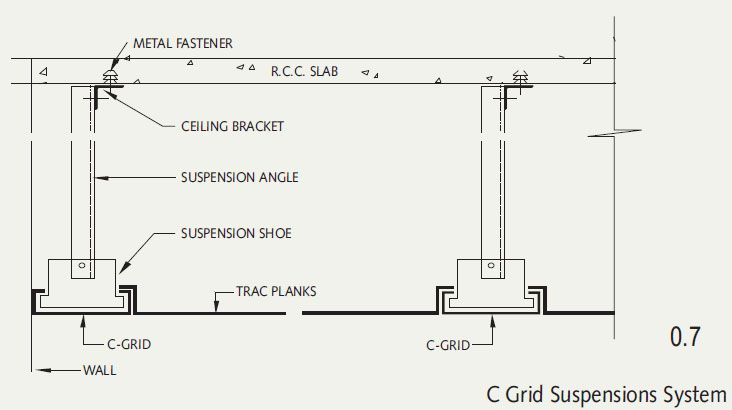

The C-grid suspension system consists of exposed C-shaped runners which are installed parallel to each other or in a square grid to form continuous main courses. The planks are hooked onto these grids.
Tiles are manufactured out of coil coated galvanised steel/aluminium alloy AA 3105/3005/5202 on advanced equipment, which includes several levelling stages in the manufacturing process. For the clip-in tile, two sides of each tile are raised and pipped and stopped to ensure positive engagement into the spring tee yet allow demounting of individual tiles.
For the lay-in system, the tiles have a flange on each end which lays on the exposed grid. All tiles have square/bevelled edges.
Planks are manufactured out of coil coated aluminium alloy AA 3105/3005/5202 galvanised steel produced on advanced equipment which includes several levelling stages.
Tiles/planks are trimmed along the wall perimeter by means of 19x19mm roll formed steel or aluminium edge cover profile.
Steel tiles/planks: Steel tiles/planks are finished on exposed side with 20 micron polyester coil coating over primer in approved shade and backing coat on rear surface (nominal 5 microns), or with a 50 micron epoxy polyester powder coating on exposed surface.
Aluminium tiles/planks: Aluminium tiles/planks are finished on exposed side with 20 micron polyester coil coating over primer in approved shade and backing coat on rear surface (nominal 5 microns), or with a 50 micron epoxy polyester powder coating on exposed surface. Wall angles are finished with 50 micron epoxy polyester powder coating paint in broken white shade.

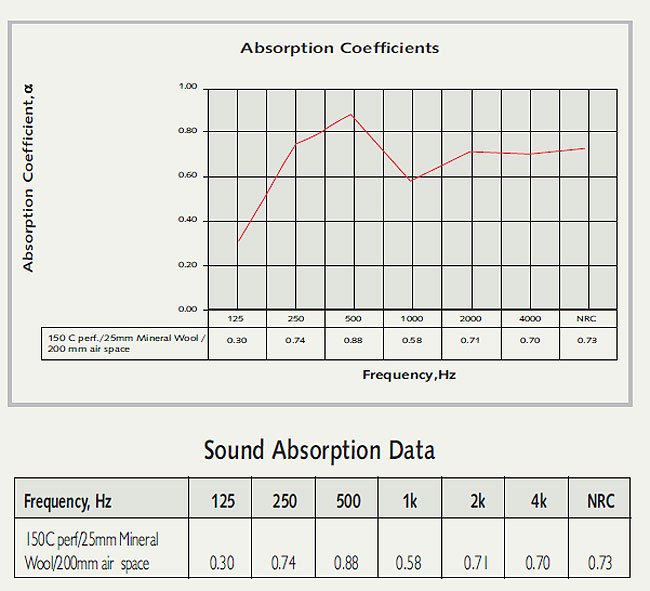

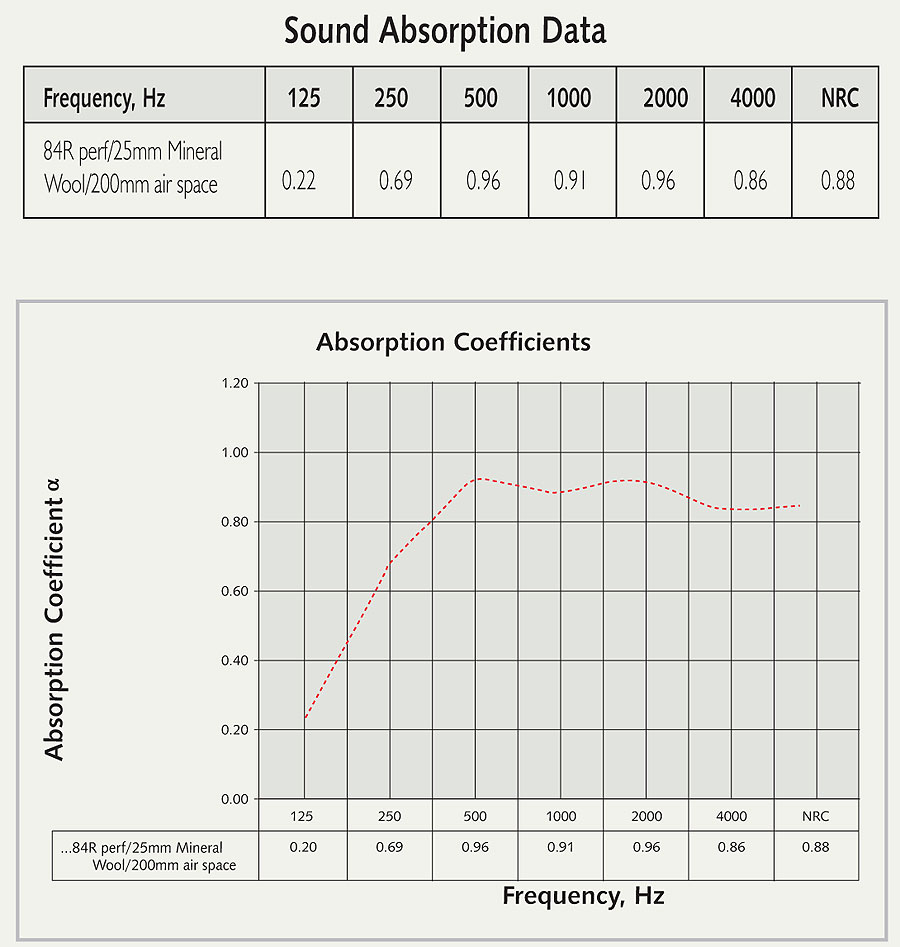

TRAC® tiles and planks are also available with perforations for providing acoustic performance characteristics. TRAC® tiles and planks are perforated as a standard with 2.5mm dia. holes at 5.5mm centre to centre in a regular pattern. Other special/non-standard perforations are also available. Tiles and planks when backed with 25mm thick resin bonded mineral wool (48 kg/m2) provide good sound absorption. Tiles and planks are also available with a factory applied acoustic tissue to the back side, which provides good sound absorption.
The Interarch Architectural Projects and Service Group (ASG) provides customers with complete design, engineering, and drafting support. ASG can help you convert your most imaginative designs into reality.
Shop drawings and detailed bill of quantities are prepared for all projects to ensure correct product supply and application.
