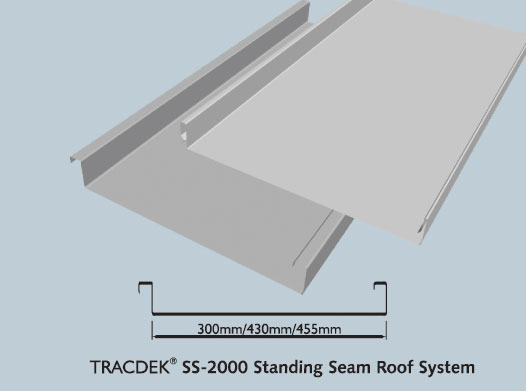

TRACDEK® SS-2000®, also known as TRACDEK® Vertical Leg Structural Standing Seam Roof System, blends the aesthetics of an architectural panel with the strength of a structural panel. These panels have good uplift ratings assuring the reliability of the roof and can go down to roof slopes of up to 1:50. The designer is thus afforded a flexible tool to meet any design challenge.
TRACDEK® SS-2000® is a field seamed system that combines a slim rib with exceptional uplift resistance. This panel has been designed to withstand the most rigorous conditions. This systems features optional factory installed hot-melt mastic for low slope applications to ensure weather tight seams. Ribs are provided for added aesthetic value.

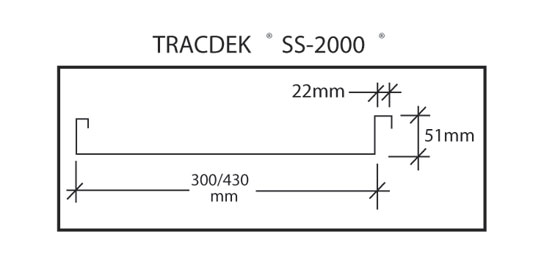

| Profile | SS 2000 |
|---|---|
| Snap Together | NO |
| Filed Seamed | YES |
| Min. Roof Slope | 1:50 |
| Transition | NO |
| Width Available | 430mm / 300mm |
| Delight Panels | YES |
| Solutions | YES |
| Clip Available | High or Low fixed High or Low floating |
| Seam Height | 51 mm |

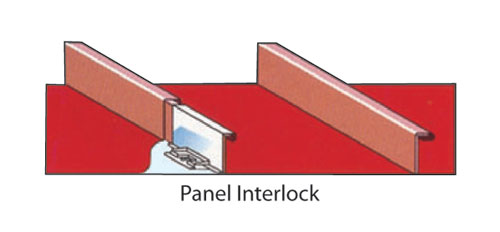

A wide choice of concealed fastening clips is available for the system. These clips hold the panels firmly in place without exposed fasteners. Each clip system offers the ability to accommodate thermal movement.
The TRACDEK® SS-2000® system has been tested for uplift ratings to satisfy most building requirements.

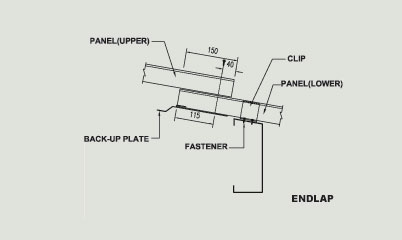

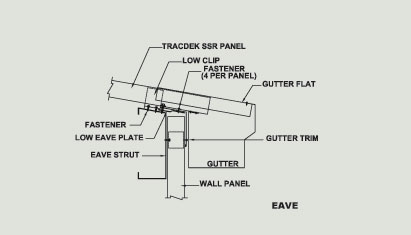

Facility of on-site roll forming eliminates panel end lap condition. Panels are manufactured ‘at-the-eaves’ enabling single length panels on long roof runs.
The system is designed to be installed over open framing. 15 mm plywood, or a composite roof assembly may be used as alternate sub-structures.
