| Project Name |
Rudraksh Detergent & Chemicals Pvt. Ltd. Unit- II |
| Project Location |
Gujarat |
| No. of Buildings |
Building 1 |
Building 2 |
| Building Usage |
Manufacturing Shed |
Lean To- Raw Material Area |
Lean To- Packaging Area |
Compressor Room |
| Total Project Area |
1011 Sq. M |
| Project Tonnage |
370 MT |
| Length |
18 M |
18 M |
24 M |
12 M |
| Width |
12.5 M |
18.2 M |
20.6 M |
12 M |
| Height |
23 M |
18 M |
12 M |
6 M |
| Design Loads |
Live Loads-
M1- 1000 kg/Sq. M
M2- 4750 Kg/Sq. M
M3- 1750 Kg/ Sq. M
M4- 2500 Kg/ Sq. M
M5- 2000 Kg/Sq. M |
N/A |
Live Loads-
2500 Kg/ Sq. M |
Live Load- 0.75 KN/ Sq. M
Dead Load- 0.15 KN/ Sq. M
Wind Speed- 50 m/sec |
| Roofing Profile & Color |
Tracdek Hi- Rib Color Coated Galvalume |
| Sheeting Profile & Color |
Tracdek Hi- Rib Color Coated Galvalume |
| Roof Slope |
1:10 |
| Mezzanine |
Mono Slope Multistoried (G+ 4)
Chequerd Plates -6 mm
Staircase & handrails- 10 M from FFL to bottom of beam
Total Mezzanine Area- 755 Sq. M |
N/A |
Chequerd Plates- 6 mm
Total Mezzanine area- 2500 Sq. M |
N/A |
| Seismic Zone |
V |

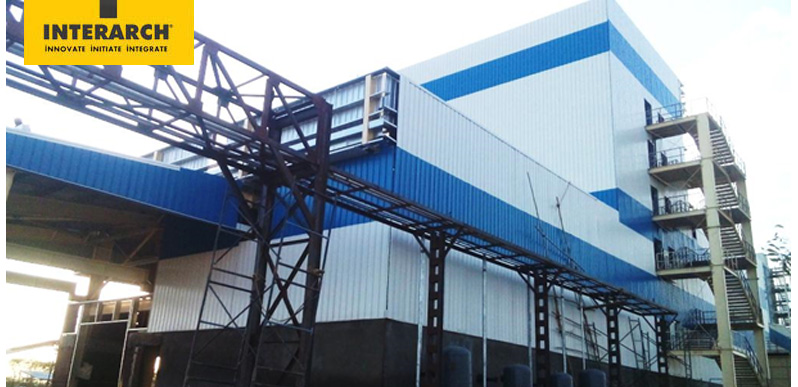

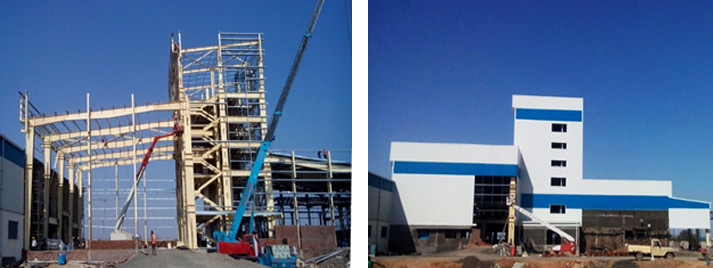

Interarch a pioneer in Pre-Engineered Steel Construction Solution provider in India with integrated facilities for design, manufacture, logistics, supply and project execution capabilities for pre- engineered steel buildings delivered a project for Rudraksh Detergent & Chemicals Pvt. Ltd.
